LogicoolのF710をJetson Nanoに接続したあとのログ

目次

LogicoolのF710をJetson Nano（L4T R32.3.1）に接続してもDirectInput Modeで使用することはできません。XInput Modeでなら使用できるようです。

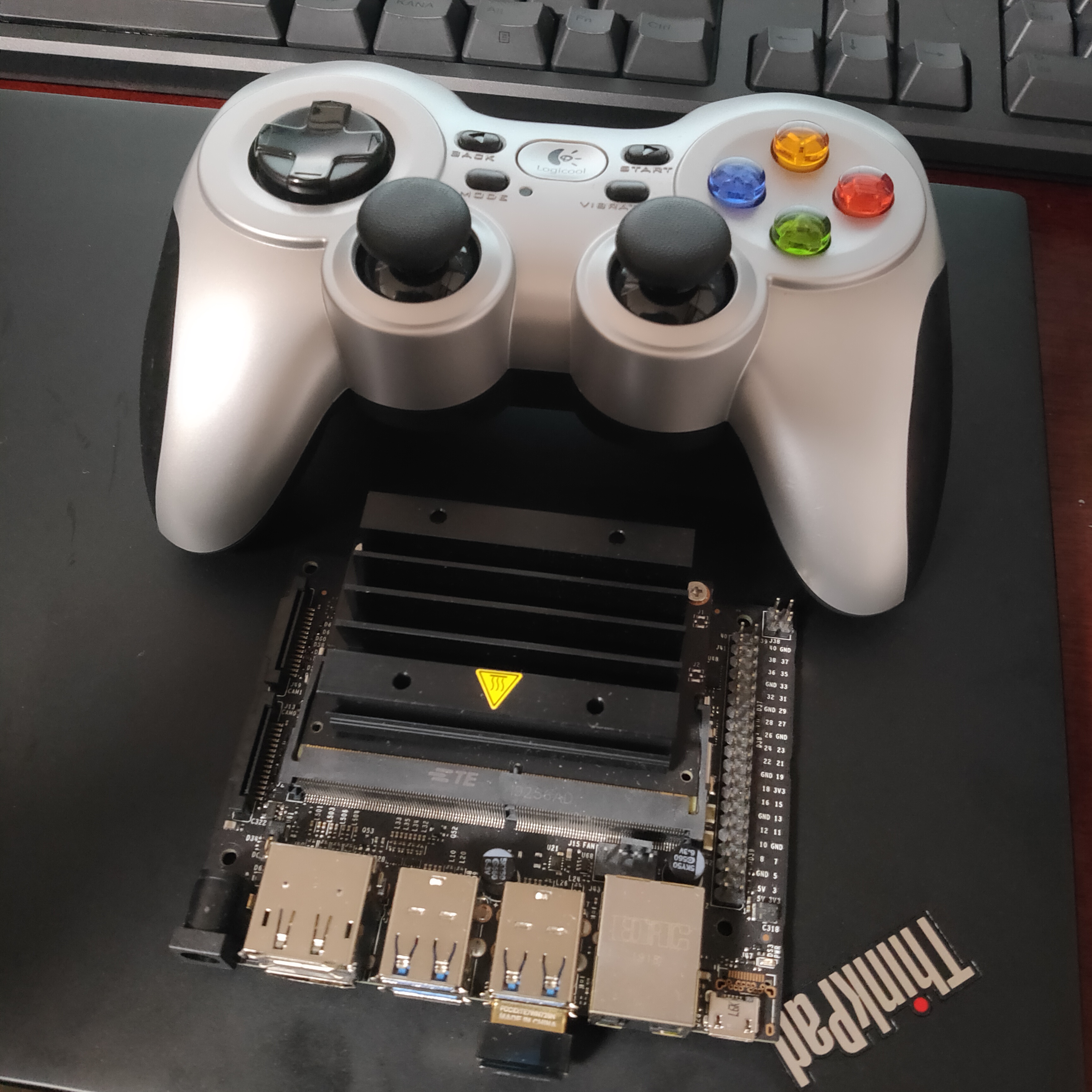

LogicoolのF710ゲームパッド
LogicoolのF710ゲームパッド

[2020年4月19日2時10分追記]使用した環境と入力モード切替時のログも追記しました

Jetson NanoにF710のドングルを差したあとのログ

ゲームパッドとして認識され、DirectInput Modeでもxpadドライバがロードされるようです。

$ uname -a
Linux JETBOT 4.9.140-tegra #1 SMP PREEMPT Mon Dec 9 22:47:42 PST 2019 aarch64 aarch64 aarch64 GNU/Linux


$ lsb_release  -a
No LSB modules are available.
Distributor ID: Ubuntu
Description:    Ubuntu 18.04.4 LTS
Release:    18.04
Codename:   bionic
$ modinfo xpad
modinfo: ERROR: Module xpad not found.
$ modinfo usbhid
modinfo: ERROR: Module usbhid not found.

DirectInput Mode

$ dmesg
[98470.427449] usb 1-2.3: new full-speed USB device number 10 using tegra-xusb
[98470.456811] usb 1-2.3: New USB device found, idVendor=046d, idProduct=c22f
[98470.456873] usb 1-2.3: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[98470.456920] usb 1-2.3: Product: Logicool Cordless RumblePad 2
[98470.456961] usb 1-2.3: Manufacturer: Logicool
[98470.466874] hid-generic 0003:046D:C22F.0006: hidraw1: USB HID v1.11 Device [Logicool Logicool Cordless RumblePad 2] on usb-70090000.xusb-2.3/input0
[98470.468862] hid-generic 0003:046D:C22F.0007: hidraw2: USB HID v1.11 Device [Logicool Logicool Cordless RumblePad 2] on usb-70090000.xusb-2.3/input1
[98486.458716] usb 1-2.3: USB disconnect, device number 10
[98486.738529] usb 1-2.3: new full-speed USB device number 11 using tegra-xusb
[98486.765265] usb 1-2.3: New USB device found, idVendor=046d, idProduct=c21f
[98486.765290] usb 1-2.3: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[98486.765308] usb 1-2.3: Product: Wireless Gamepad F710
[98486.765324] usb 1-2.3: Manufacturer: Logicool
[98486.765340] usb 1-2.3: SerialNumber: 62CC998F
[98486.768729] input: Logitech Gamepad F710 as /devices/70090000.xusb/usb1/1-2/1-2.3/1-2.3:1.0/input/input6
$ usb-devices
T:  Bus=01 Lev=02 Prnt=02 Port=02 Cnt=01 Dev#= 11 Spd=12  MxCh= 0
D:  Ver= 2.00 Cls=ff(vend.) Sub=ff Prot=ff MxPS= 8 #Cfgs=  1
P:  Vendor=046d ProdID=c21f Rev=03.06
S:  Manufacturer=Logicool
S:  Product=Wireless Gamepad F710
S:  SerialNumber=62CC998F
C:  #Ifs= 1 Cfg#= 1 Atr=80 MxPwr=98mA
I:  If#= 0 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=5d Prot=01 Driver=xpad

XInput Mode

$ dmesg
[98807.199160] usb 1-2.3: new full-speed USB device number 12 using tegra-xusb
[98807.228480] usb 1-2.3: New USB device found, idVendor=046d, idProduct=c22f
[98807.228533] usb 1-2.3: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[98807.228576] usb 1-2.3: Product: Logicool Cordless RumblePad 2
[98807.228614] usb 1-2.3: Manufacturer: Logicool
[98807.242143] hid-generic 0003:046D:C22F.0008: hidraw1: USB HID v1.11 Device [Logicool Logicool Cordless RumblePad 2] on usb-70090000.xusb-2.3/input0
[98807.244247] hid-generic 0003:046D:C22F.0009: hidraw2: USB HID v1.11 Device [Logicool Logicool Cordless RumblePad 2] on usb-70090000.xusb-2.3/input1
[98807.483145] usb 1-2.3: USB disconnect, device number 12
[98807.747170] usb 1-2.3: new full-speed USB device number 13 using tegra-xusb
[98807.777205] usb 1-2.3: New USB device found, idVendor=046d, idProduct=c21f
[98807.777261] usb 1-2.3: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[98807.777306] usb 1-2.3: Product: Wireless Gamepad F710
[98807.777346] usb 1-2.3: Manufacturer: Logicool
[98807.777385] usb 1-2.3: SerialNumber: 62CC998F
[98807.785888] input: Logitech Gamepad F710 as /devices/70090000.xusb/usb1/1-2/1-2.3/1-2.3:1.0/input/input7
$ usb-devices
T:  Bus=01 Lev=02 Prnt=02 Port=02 Cnt=01 Dev#= 13 Spd=12  MxCh= 0
D:  Ver= 2.00 Cls=ff(vend.) Sub=ff Prot=ff MxPS= 8 #Cfgs=  1
P:  Vendor=046d ProdID=c21f Rev=03.06
S:  Manufacturer=Logicool
S:  Product=Wireless Gamepad F710
S:  SerialNumber=62CC998F
C:  #Ifs= 1 Cfg#= 1 Atr=80 MxPwr=98mA
I:  If#= 0 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=5d Prot=01 Driver=xpad

x64のPCにF710のドングルを差したあとのログ

DirectInput ModeでもXInput Modeでも使用できました。

$ uname -a
Linux T480s 5.3.0-40-generic #32~18.04.1-Ubuntu SMP Mon Feb 3 14:05:59 UTC 2020 x86_64 x86_64 x86_64 GNU/Linux


$ lsb_release -a
No LSB modules are available.
Distributor ID: Ubuntu
Description:    Ubuntu 18.04.4 LTS
Release:    18.04
Codename:   bionic

DirectInput Mode

汎用のUSB HIDデバイスとして機能しているようです。

$ dmesg
[16025.084568] usb 1-1: new full-speed USB device number 7 using xhci_hcd
[16025.235368] usb 1-1: New USB device found, idVendor=046d, idProduct=c22f, bcdDevice= 3.06
[16025.235373] usb 1-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[16025.235377] usb 1-1: Product: Logicool Cordless RumblePad 2
[16025.235380] usb 1-1: Manufacturer: Logicool
[16025.239083] hid-generic 0003:046D:C22F.0002: hiddev0,hidraw0: USB HID v1.11 Device [Logicool Logicool Cordless RumblePad 2] on usb-0000:00:14.0-1/input0
[16025.241236] hid-generic 0003:046D:C22F.0003: hiddev1,hidraw1: USB HID v1.11 Device [Logicool Logicool Cordless RumblePad 2] on usb-0000:00:14.0-1/input1
$ usb-devices
T:  Bus=01 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#=  6 Spd=12  MxCh= 0
D:  Ver= 2.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS= 8 #Cfgs=  1
P:  Vendor=046d ProdID=c219 Rev=03.06
S:  Manufacturer=Logicool
S:  Product=Logicool Cordless RumblePad 2
C:  #Ifs= 1 Cfg#= 1 Atr=80 MxPwr=98mA
I:  If#= 0 Alt= 0 #EPs= 2 Cls=03(HID  ) Sub=00 Prot=00 Driver=usbhid

XInput Mode

ゲームパッドとして認識され、xpadドライバがロードされるようです。

$ dmesg
[ 3249.361775] usb 1-1: new full-speed USB device number 7 using xhci_hcd
[ 3249.513109] usb 1-1: New USB device found, idVendor=046d, idProduct=c22f, bcdDevice= 3.06
[ 3249.513115] usb 1-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[ 3249.513119] usb 1-1: Product: Logicool Cordless RumblePad 2
[ 3249.513122] usb 1-1: Manufacturer: Logicool
[ 3249.585368] hidraw: raw HID events driver (C) Jiri Kosina
[ 3249.589501] usbcore: registered new interface driver usbhid
[ 3249.589502] usbhid: USB HID core driver
[ 3249.595095] hid-generic 0003:046D:C22F.0001: hiddev0,hidraw0: USB HID v1.11 Device [Logicool Logicool Cordless RumblePad 2] on usb-0000:00:14.0-1/input0
[ 3249.595282] hid-generic 0003:046D:C22F.0002: hiddev1,hidraw1: USB HID v1.11 Device [Logicool Logicool Cordless RumblePad 2] on usb-0000:00:14.0-1/input1
[ 3265.134956] usb 1-1: USB disconnect, device number 7
[ 3265.665816] usb 1-1: new full-speed USB device number 8 using xhci_hcd
[ 3265.820131] usb 1-1: New USB device found, idVendor=046d, idProduct=c21f, bcdDevice= 3.06
[ 3265.820133] usb 1-1: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 3265.820134] usb 1-1: Product: Wireless Gamepad F710
[ 3265.820135] usb 1-1: Manufacturer: Logicool
[ 3265.820135] usb 1-1: SerialNumber: 62CC998F
[ 3265.838656] input: Logitech Gamepad F710 as /devices/pci0000:00/0000:00:14.0/usb1/1-1/1-1:1.0/input/input19
[ 3265.838792] usbcore: registered new interface driver xpad
$ usb-devices
T:  Bus=01 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#=  8 Spd=12  MxCh= 0
D:  Ver= 2.00 Cls=ff(vend.) Sub=ff Prot=ff MxPS= 8 #Cfgs=  1
P:  Vendor=046d ProdID=c21f Rev=03.06
S:  Manufacturer=Logicool
S:  Product=Wireless Gamepad F710
S:  SerialNumber=62CC998F
C:  #Ifs= 1 Cfg#= 1 Atr=80 MxPwr=98mA
I:  If#= 0 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=5d Prot=01 Driver=xpad
